AlBeCast

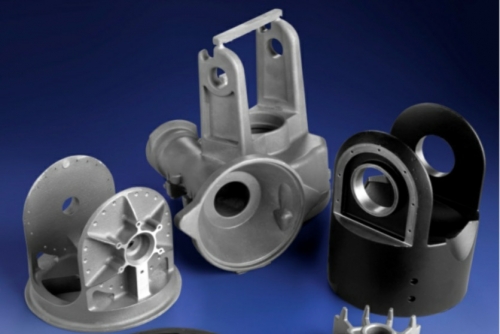

- AlBeCast® is a cast product mainly composed of beryllium and aluminum.
- Similar to AlBeMet®, the combination of ultra-light weight, strength and thermal properties is affordable to customers through the Near Net Shape (NNS) process for areas they need.
SPECS
| MODEL | Density (g/cm3) | Modulus of Elasticity (GPa) | Ultimate Tensile Strenght(MPa) | Yield Strenght (MPa) | Elongation (%) |
| Beryllium S-200F AlBeMet® AlBeCast® 910 AlBeCast® 920 Magnesium AZ80A T6 Aluminum 6061 T6 Titanium Grade 4 | 1.85 2.1 2.17 2.16 1.8 2.7 4.5 | 303 193 193 202 45 69 105 | 380 305 211 269 340 290 660 | 260 226 165 220 250 255 590 | 3 4.7 5 4 5 12 20 |
| MODEL | Thermal Conductivity @25ºC(W/mK) | Specific Heat Capacity @20ºC(J/gºK) | Coefficient of Expansion(ppm/°c) |
| Beryllium S-200F AlBeMet® AlBeCast® 910 AlBeCast® 920 Magnesium AZ80A T6 Aluminum 6061 T6 Titanium Grade 4 | 216 210 110 105 76 160 16.9 | 1.95 1.56 1.56 1.25 1.05 0.896 0.54 | 11.3 13.9 14.6 14.2 26 24 8.6 |
