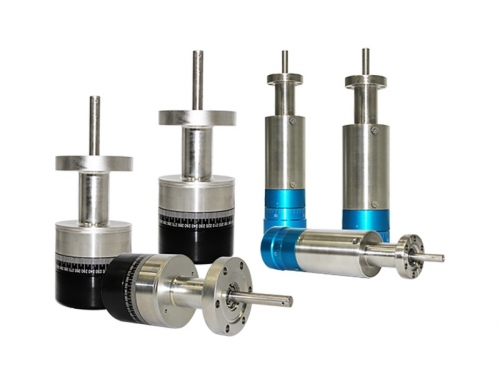

Bellow Sealed Rotary Feedthrough
SPECS
● Welded stainless steel bellows Sealed
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Laser Etched Scale in 1° Increments
● Rotation range: 360° continuous
● Mounting flange: Clear hole
| Flange OD | Actuation | Resolution | Weight（Kg) | Part Number | |
| mm | inch | ||||
| 34 | 1.33 | Manual | 1° | 0.5 | BR16M |
| Step Motor | 0.2° | 1.1 | BR16A | ||
| 70 | 2.75 | Manual | 1° | 1.3 | BR35M |
