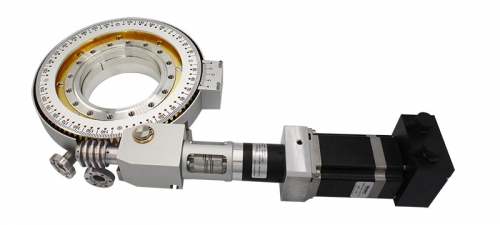

Differentially Pumped Rotary Feedthrough
- Differentially Pumped Rotary Feedthrough allows two flanges to rotate concentricly, which can be used as a modular component for constructing UHV multi-axis manipulators. It provides primary rotation for other components and achieve 360° continuous rotation. The feedthrough could be used for the applications including sample surface analysis (XPS, AES or SIMS), ion/neutral/atom scattering experiments, etc.
SPECS
● Manual/ Step Motor Actuator
● Precision Ball Bearings and Quality PTFE
● Rotation range: 360° continuous
● Bakeable to 150℃
● Laser Etched Scale in 1° Increments
● Two Stage Differential Pumping for UHV Performance
● Mounting flange on both sides: CF flange, tapped hole
| Flange OD | Actuation | Resolution | Weight（Kg) | Part Number | |
| mm | inch | ||||
| 114 | 4.5 | Manual | 0.1° | 4.5 | DPRF63M |
| Step Motor | 0.01° | 6.1 | DPRF63A | ||
| 152 | 6 | Manual | 0.1° | 9.2 | DPRF100M |
| Step Motor | 0.01° | 11.0 | DPRF100A | ||
