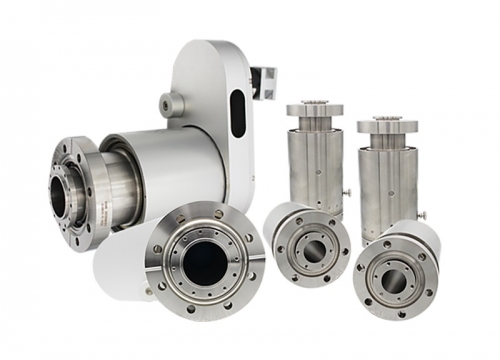

Hollow Shaft Magnetic Coupled Rotary Feedthrough
- Hollow Shaft Magnetic Coupled Rotary Feedthrough has a rotatable internal hollow shaft, and each drive terminates with a CF flange at the rear enabling services such as electric, fluid or an extra motion to be passed through the drive. The rotary feedthrough is designed to carry heavy load on the hollow shaft.
SPECS
● Magnetic Coupling
● UHV Rated to 10-11 mbar
● Bakeable to 150℃
● Rotation range: 360° continuous
● Laser Etched Scale in 1° Increments
● UHV Compatible materials
● No backlash under low load
● Top mounting flange: CF flange, tapped hole
● Bottom mounting flange: CF flange, clear hole
| Flange OD | Actuation | Resolution | Weight (Kg) | Part Number | |
| mm | inch | ||||
| 70 | 2.75 | Manual | 1° | 3.0 | HSR35M |
| Step Motor | 0.1° | 5.0 | HSR35A | ||
| 114 | 4.5 | Manual | 1° | 6.9 | HSR63M |
| Step Motor | 0.1° | 8.0 | HSR63A | ||
