Oxygen-free copper gasket
SPECS
Product Overview

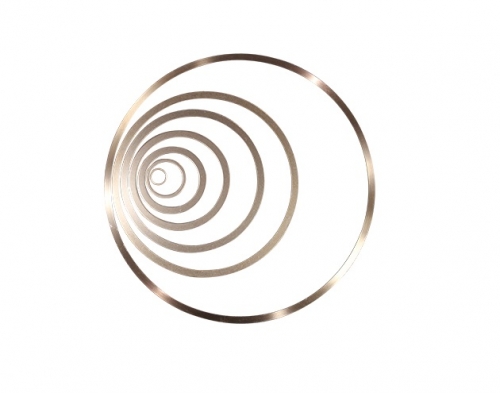

Oxygen-free copper gaskets are commonly used for CF flange sealing. They are inspected, fully cleaned and then individually packed to ensure UHV compatibility. We also offer OFC gasket which is annealed, gold or silver coated to meet different requirements. Please contact us for more information.

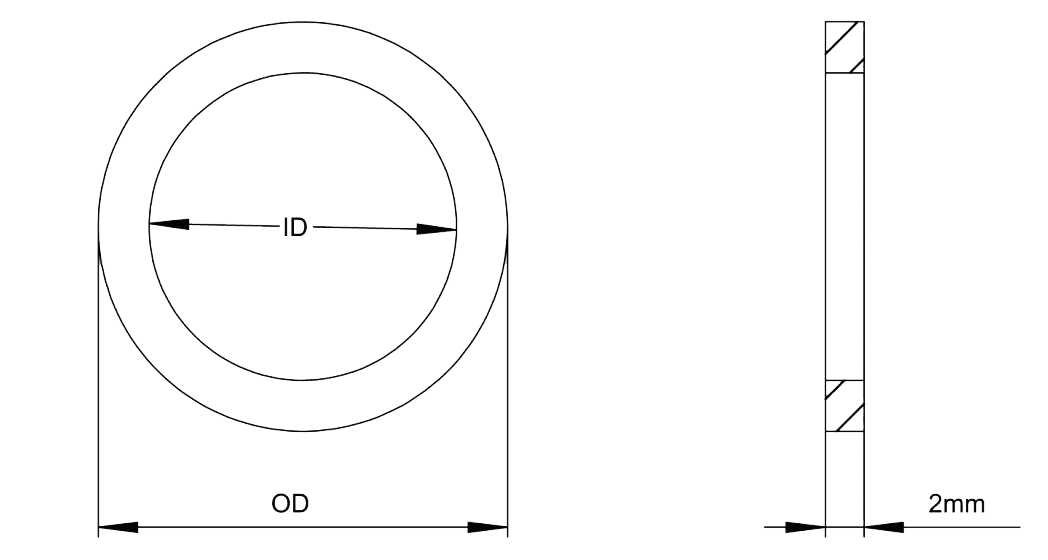

Specification
| Flange OD | Gasket OD | Gasket ID | Weight（g） | Part Number | |||
| mm | inch | mm | inch | mm | inch | ||
| 34 | 1.3 | 21.3 | 0.84 | 16 | 0.63 | 4.0 | OFCG16 |
| 70 | 2.75 | 48.2 | 1.90 | 38.5 | 1.52 | 8.0 | OFCG40 |
| 114 | 4.50 | 82.4 | 3.25 | 66 | 2.76 | 16.0 | OFCG63 |
| 152 | 6.00 | 120.5 | 4.75 | 101 | 3.98 | 24.0 | OFCG100 |
| 203 | 8.00 | 171 | 6.74 | 152 | 5.98 | 32.0 | OFCG150 |
| 250 | 10.00 | 222 | 8.74 | 203 | 8.00 | 45.0 | OFCG200 |
| 300 | 12.00 | 272 | 10.74 | 255 | 10.04 | 120 | OFCG250 |
