Port Aligner
SPECS
Product Overview

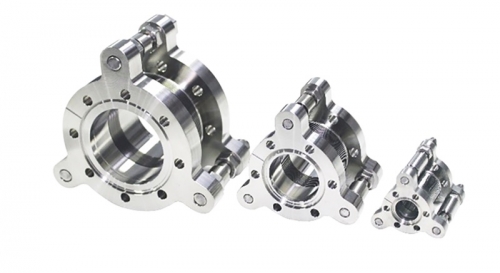

The Port Aligners can be used to adjust the distance and angular between two flanges.
It uses CF standard flanges and each type can provide ±5 mm axial length and ±3 angular tilt adjustment range. Specification
It uses CF standard flanges and each type can provide ±5 mm axial length and ±3 angular tilt adjustment range. Specification
● Mounted in any orientation
● Working Pressure：10-11mbar~1bar
● Bakeable to 200℃
● Welded Bellows Seal with SS 316
● Clear Hole Flanges on Both Sides
● Angular tilt: ±3°
● Axial Adjustment: ±5 mm
| Flange OD | A | B | C | Weight（Kg) | Part Number | |
| mm | inch | mm | ||||
| 34 | 1.33 | 52 | 16 | 58 | 0.3 | PA16 |
| 70 | 2.75 | 65 | 38 | 106 | 0.9 | PA35 |
| 114 | 4.5 | 79 | 65 | 166 | 2.7 | PA63 |
| 152 | 6.0 | 105 | 102 | 206 | 4.6 | PA100 |
| 203 | 8.0 | 128 | 150 | 290 | 6.1 | PA150 |
